Product Description

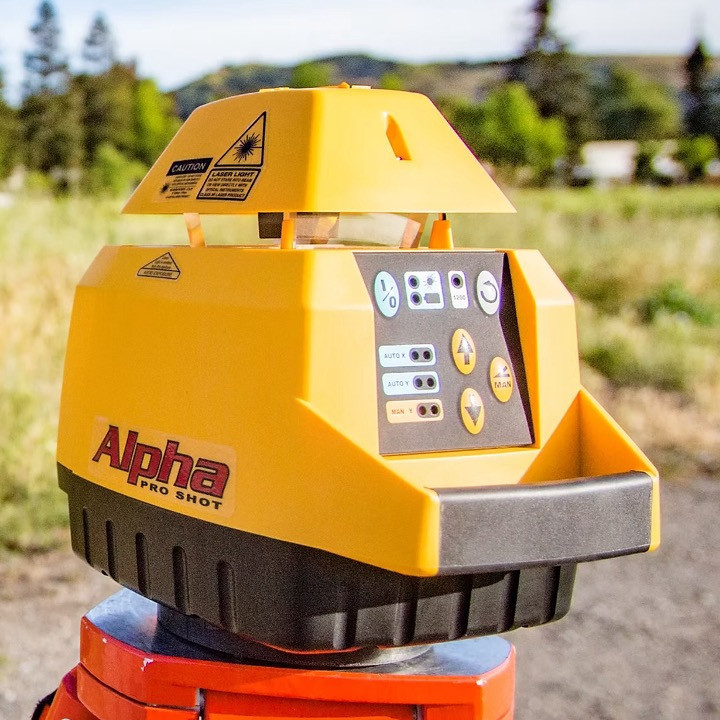

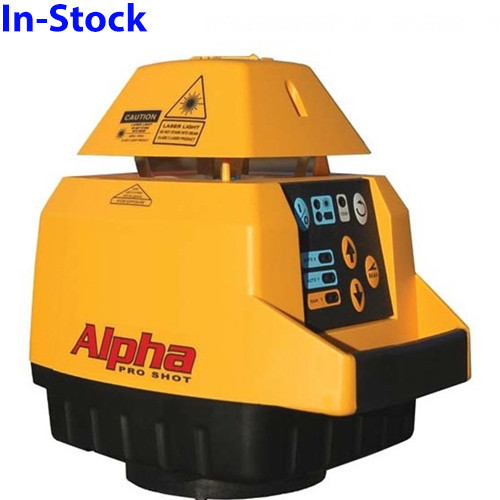

ProShot Alpha XD w/R9 Receiver Horizontal Laser Level.
The Pro Shot Alpha XD Laser Level is a rugged, long-range rotary construction laser designed for contractors, grading crews, and agricultural land-leveling applications that demand extended working distance and dependable accuracy. Built for extreme-distance elevation reference and grading, the Alpha XD delivers the rugged self-leveling performance of the standard Pro Shot Alpha, with added long-range capability for larger jobsites and land-leveling work.
The Alpha XD is designed for tough field conditions, featuring servo self-leveling, high-performance operation, and a rugged jobsite-ready build. Pro Shot states that every Alpha XD is individually temperature tested through a range of temperatures to help ensure reliable performance under changing jobsite conditions.
With a published range of 4,800 ft diameter with the R9 receiver, better than 10 arc-second accuracy, ±5° self-leveling range, single-axis 8% slope matching, selectable 600 / 1200 rpm rotation speeds, and machine-control compatibility, the Pro Shot Alpha XD is built for crews that need long-distance laser performance without sacrificing durability.
Major Features
- Long-range rotary laser designed for extreme-distance grading and elevation reference
- Ideal for agricultural land leveling, grading, and large-site construction
- Rugged servo self-leveling design
- Published range with R9 receiver: 4,800 ft diameter
- Accuracy: better than 10 arc seconds
- ±5° self-leveling range
- Single-axis 8% slope matching
- Height Alert normally active and can be disabled
- Selectable rotation speeds: 600 rpm or 1200 rpm
- Machine-control compatible, including high-speed rotation
- Long battery life: up to 200 hours with alkaline batteries
- Optional rechargeable NiMH kit with up to 90 hours
- Visible 650 nm laser beam
- Dust and water sealed to IP56
- Operating temperature: -4°F to +140°F / -20°C to +60°C
- 8-year no-exclusions warranty
- Built jobsite tough with Pro Shot’s published “unlimited drop height” statement
2) Specification Table — Pro Shot Alpha XD Laser Level
| Specification | Details |
|---|---|
| Manufacturer | Pro Shot Laser |
| Model | Alpha XD |
| Part Number | 020-0000B |
| Laser Type | Long-range rotary construction / land-leveling laser |
| Primary Use | Agricultural land leveling, long-distance elevation reference, grading |
| Range with R9 Receiver | 4,800 ft diameter |
| Published Metric Range | 1.46 km |
| Accuracy | Better than 10 arc seconds |
| Accuracy at 100 ft | ±1/16" per 100 ft |
| Accuracy at 30 m | ±1.5 mm per 30 m |
| Self-Leveling Range | ±5° |
| Slope Matching | Single axis, 8% |
| Height Alert | Normally active; can be disabled |
| Rotation Coverage | 360° |
| Rotation Speed | 600 rpm or 1200 rpm, selectable |
| Machine Control Compatible | Yes, including high-speed rotation |
| Power Source | Four C-cell alkaline batteries |
| Battery Life | Up to 200 hours with alkaline batteries |
| Rechargeable Option | Optional NiMH rechargeable kit |
| Rechargeable Runtime | Up to 90 hours |
| Laser Beam Type | Visible 650 nm |
| Laser Classification | CDRH Class IIIa / IEC Class 3R |
| Dust / Water Protection | IP56 |
| Operating Temperature | -4°F to +140°F / -20°C to +60°C |
| Warranty | 8-year no-exclusions warranty |
3) Common Applications
The Pro Shot Alpha XD is a strong fit for:
- Agricultural land leveling
- Long-distance grading
- Elevation reference over large areas
- Site preparation
- Earthwork and pad grading
- Machine-control laser applications
- Construction layout over extended distances
- Large commercial jobsites
- Field grading where long range and battery life matter
4) Why Buy the Pro Shot Alpha XD from PRISM GeoSystems?
Buying a long-range construction laser is not just about getting the instrument. It is about getting the right package, the right receiver, the right accessories, and support from people who understand how these lasers are used in the field.
When you purchase the Pro Shot Alpha XD Laser Level from PRISM GeoSystems, you benefit from:
- Correct package configuration: We help match the Alpha XD with the correct R9 receiver setup, tripod, grade rod, rechargeable battery option, machine-control accessories, and field-ready package.
- Practical setup support: We can help with receiver setup, slope matching, rotation speed selection, height alert use, and general jobsite operation.
- Service and calibration support: If the laser gets dropped, bumped, or starts giving questionable readings, you have a local service-minded team that understands construction laser troubleshooting and calibration.
- One-stop source: Sales, rentals, service, calibration, batteries, chargers, receivers, rods, tripods, and accessories from one place.
- Local Southern California support: Serving San Diego, Los Angeles, San Bernardino, Colton, San Marcos, Imperial, Riverside, Orange County, and surrounding areas.
Please Note: Due to the fact that we are brick and mortar store, items may be sold before updating our online inventory.
