Product Description

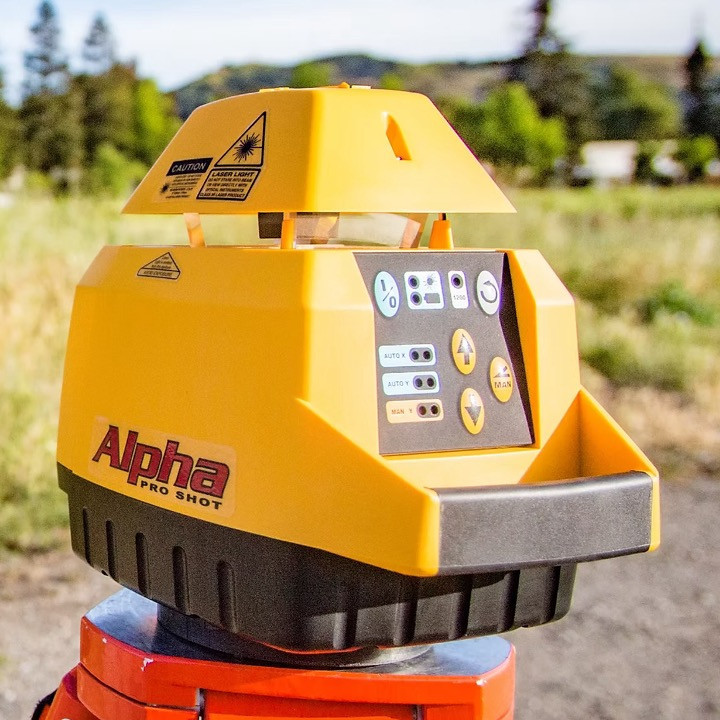

The Pro Shot Alpha Laser Level is a rugged, high-performance construction rotary laser built for contractors who need dependable leveling performance on demanding jobsites. Designed for large commercial sites, general construction, grading support, layout, and machine-control applications, the Alpha is built to handle real-world jobsite use while maintaining consistent accuracy and reliable operation.
The Alpha features Pro Shot’s rugged self-leveling design with proprietary winch and cable technology, eliminating traditional lead screws for improved durability. Each Alpha is temperature tested to help ensure dependable performance under changing jobsite conditions, and its real-time active temperature compensation helps maintain accuracy as the environment changes throughout the day.
With a working range of up to 2,000 ft diameter when used with the R9 receiver, 10 arc-second accuracy, ±5° self-leveling range, selectable 600 / 1200 rpm rotation speeds, and up to 200 hours of battery life using alkaline batteries, the Pro Shot Alpha is built for crews that need a tough, long-running laser they can trust.
Major Features
- Rugged construction laser level built for demanding commercial jobsites
- Pro Shot exclusive winch and cable self-leveling technology with no lead screws
- Temperature tested for reliable jobsite performance
- Real-time active temperature compensation
- Drift Monitor / HI alert warns if the laser has been disturbed
- Manual slope matching for single-axis grade applications
- Machine control compatible, including high-speed rotation
- Selectable rotation speeds: 600 rpm or 1200 rpm
- Long battery life: up to 200 hours with alkaline batteries
- Optional rechargeable NiMH battery kit with up to 90 hours of runtime
- IP56 dust and water sealing
- Best-in-class 8-year no-exclusions warranty
Specification Table — Pro Shot Alpha Laser Level
| Specification | Details |
|---|---|
| Manufacturer | Pro Shot Laser |
| Model | Alpha |
| Part Number | 020-0000 |
| Range with R9 Receiver | 2,000 ft diameter / 1,000 ft radius |
| Accuracy | 10 arc seconds / ±1/16" at 100 ft / ±1.5 mm at 30 m |
| Self-Leveling Range | ±5° |
| Slope Matching | ±25% single axis |
| Height Alert | Normally active; can be disabled |
| Rotation Coverage / Speed | 360° at 600 rpm or 1200 rpm selectable |
| Machine Control Compatible | Yes, including high-speed rotation |
| Power Source | Four C-cell alkaline batteries |
| Battery Life | Up to 200 hours alkaline |
| Rechargeable Option | Optional NiMH rechargeable kit, up to 90 hours |
| Laser Beam | Visible 650 nm |
| Laser Classification | CDRH and IEC Class 2 |
| Dust / Water Protection | IP56 |
| Operating Temperature | -4°F to +140°F / -20°C to +60°C |
| Warranty | 8-year no-exclusions warranty |
| Optional Remote | Available; ON/OFF and matching grade control up to 300 ft / 91 m |
Why Buy the Pro Shot Alpha from PRISM GeoSystems?
Buying a construction laser is not just about the instrument — it is about getting the right package, the right receiver, the right accessories, and real support when your crew is in the field.
When you purchase the Pro Shot Alpha Laser Level from PRISM GeoSystems, you get:
- Correct package configuration: We help match the Alpha with the right receiver, tripod, grade rod, remote option, rechargeable kit, and accessories for your work.
- Jobsite-ready support: We can help with setup, receiver use, slope matching, HI alert, rotation speed selection, and practical field operation.
- Local service mindset: If your laser gets dropped, bumped, or readings look questionable, you have a local team that understands calibration, service, and construction laser troubleshooting.
- One-stop source: Sales, rentals, service, calibration, accessories, and training all from one place.
- Southern California support: Serving San Diego, Los Angeles, San Bernardino, Colton, San Marcos, Imperial, Riverside, Orange County, and surrounding areas.
*Please Note: Due to the fact that we are brick and mortar store with daily customer traffic, items may be sold before updating our online inventory. Please call (619)283-3137 to confirm availability.
