Geospatial & Engineering Instruments

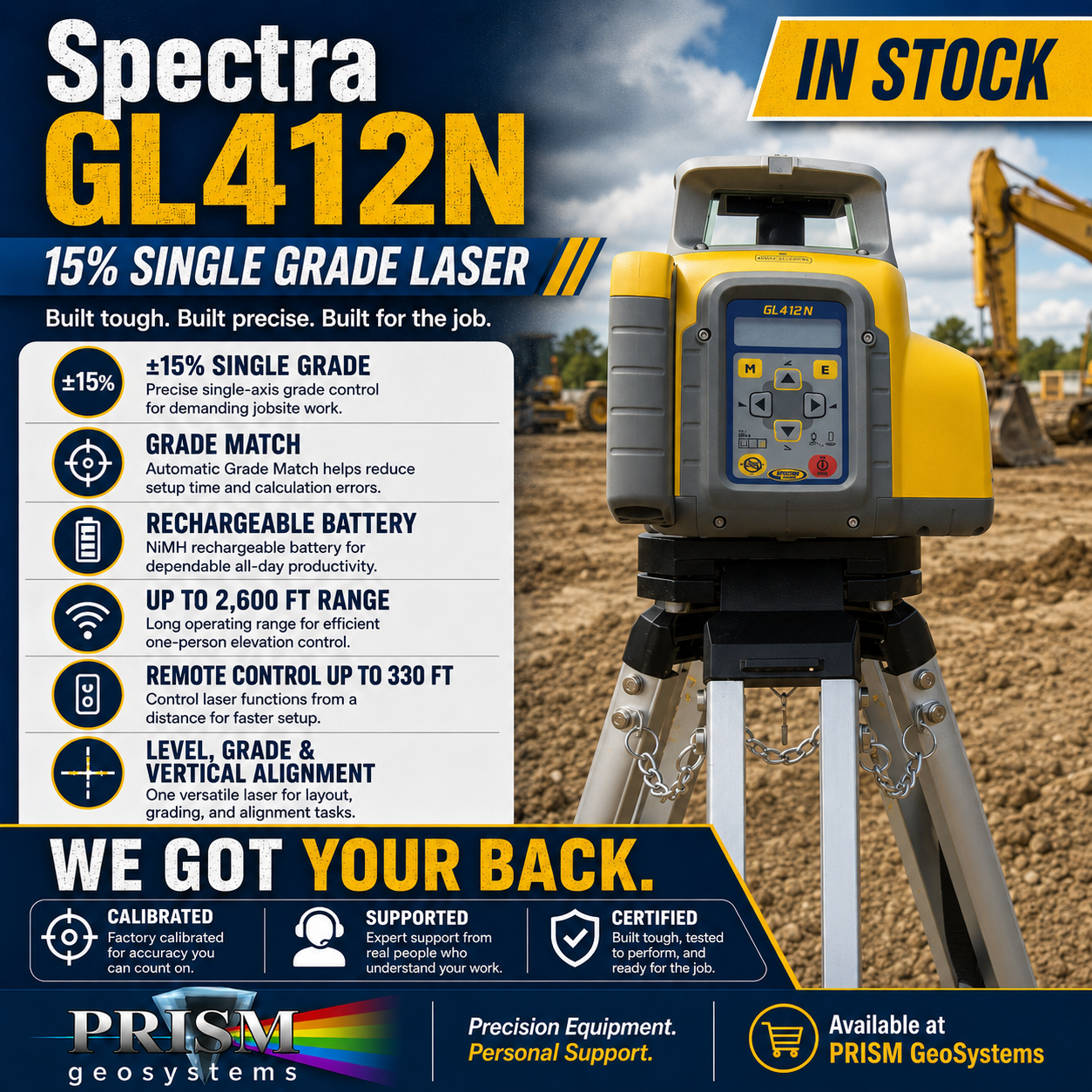

  • Spectra GL412N 15% Single Grade Laser w/HL760 Sensor Rech. Batt.
  • Spectra GL412N 15% Single Grade Laser w/HL760 Sensor Rech. Batt.
  • Spectra GL412N 15% Single Grade Laser w/HL760 Sensor Rech. Batt.

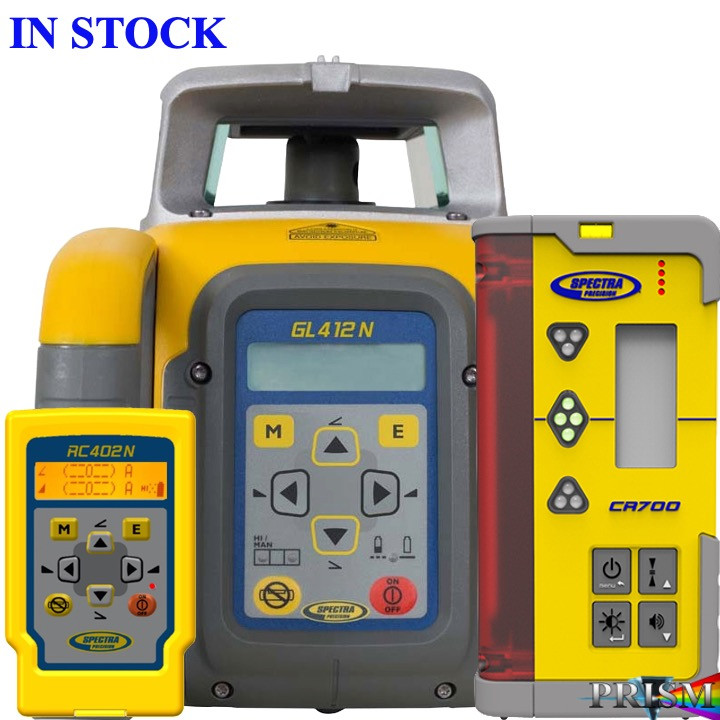

    • Spectra GL412N 15% Single Grade Laser, CR700 Sensor, RC402N, Rech.

    Spectra

    MSRP: $3,031.00
    $2,220.15
    (You save $810.85 )
    SKU:
    GL412N-WC-1-1-1
    Availability:
    In stock
    Shipping:
    Calculated at Checkout
    Availability:
    Ships out the next business day, or Pick it up today in-store during business hours.
    Condition:
    Brand New with 5 years manufacturer warranty.
    Adding to cart… category.add_cart_announcement

    Product Description

    Product Brochure

    Features & Benefits
    • Easy-to-use menu-driven interface reduces learning time and eliminates complex button pressing to activate advanced features
    • The exact grade can be entered in single axis and is self-leveling​
    • One person elevation control with 2600 ft (800 m) diameter range increases productivity
    • RC402N radio remote control allows control of all laser functions from up to 330 ft (100 m) away​
    • Maintains performance even in rainy, dusty and other harsh job site and weather conditions – IP66 environmental rating
    • Durable design reduces downtime due to drops and tripod tip-overs​
    • Automatic Grade Match eliminates time-consuming and error-prone calculation
    • Mask mode eliminates interference with other crews on the job site​
    Specifications
    • Leveling Accuracy: ± 1.5 mm/30 m, 1/16“ @ 100 ft, 10 arc seconds
    • ​Operating Diameter: Approx. 800 m (2600 feet)
    • ​Grade Range:-10% to +15% (Dual Axes GL422N) -10% to +15% (Single Axis GL412N)
    • ​Rotation:300, 600 rpm
    • Laser Type: red diode laser 650 nm
    • ​Laser Class: Class 2, <3.4 mW
    • ​Self-Leveling Range: ± 5° (±9%)
    • ​Leveling Indicators: LCD indications and LED flashes
    • ​Radio Range: (HL760): up to 100 m (330 ft)
    • Power Source: 10.000 mAh NiMH battery pack (Alkalines can be used)
    • Battery Life: 35 hours NiMH; 50 hours alkalineOperating Temp: -20°C to 50°C (-4°F to 122°F)
    • Tripod Attachments: 5/8 x 11 horizontally and vertically.

    Applications

    • Leveling concrete forms and footers
    • General construction vertical alignment and plumb such as anchor bolt and form alignment
    • “Over the top” sewer and storm drain pipe installations
    • Grading and excavating
    • Driveways and ramps
    • Trenching
    • Sport fields, tennis courts (GL422N only)
    • Steep slope road embankments and ditch banks

    Why Purchasing the GL412N from PRISM GeoSystems Benefits You

    Buying a grade laser isn’t just the tool—it’s getting the right kit and having support when the job is live.

    When you buy from PRISM GeoSystems, you get:

    • Correct kit configuration (no guessing): We match you with the right receiver option (HL760 vs CR700), clamps/brackets, rod, tripod, and power setup for your workflow.
    • Jobsite-ready support: Setup help, best practices, and quick troubleshooting—so you don’t lose half a day chasing issues.
    • Local dealer accountability: If readings look off after a bump/tip-over, you have a real team to help verify and get you back working fast.
    • Regional availability: Available near you across San Diego.

    *Please Note: Due to the fact that we are brick and mortar store with daily customer traffic, items may be sold before updating our online inventory. Call 619-283-3137 to confirm availability.
