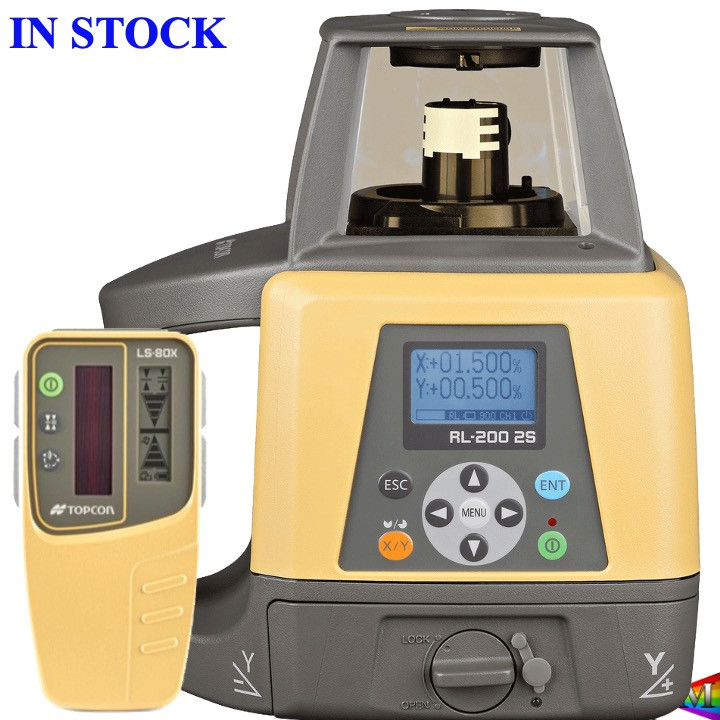

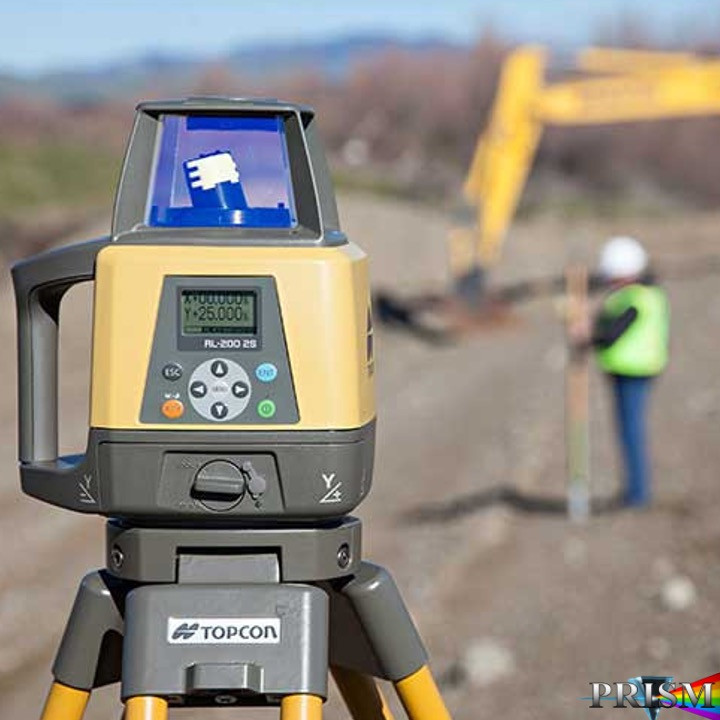

Topcon RL-200 2S Dual Slope Laser Level
The Topcon RL-200 2S Dual Slope Laser Level is a high-accuracy, self-leveling grade laser built for contractors who need dependable dual-slope control for grading, drainage, excavation, and general sitework. The RL-200 Series is designed to help crews “accelerate production, minimize mistakes, and move forward with measured confidence,” with a focus on repeatable grade performance on demanding jobsites.
The RL-200 2S provides dual slopes up to ±10% on the X axis and -5% to +25% on the Y axis, giving crews strong flexibility for drainage, pads, ramps, roadway work, parking lots, and other grading applications. Topcon lists the RL-200 Series with 7 arc-second accuracy, range up to 1100 m, and up to 100 hours of battery life, making it a strong choice for contractors who need long-range performance and consistent grade repeatability.
The RL-200 2S also includes full remote operation capability with the RC-400 remote control, allowing the operator to view operating information, change grade, select menu settings, check operating status, and verify battery life from up to 300 m away—without walking back to the laser.
Major Features
- Dual-slope capability: Up to ±10% in X axis and -5% to +25% in Y axis for demanding grading applications.
- High grade repeatability: Topcon lists the RL-200 Series at 7 arc-second accuracy for consistent setup-to-setup performance.
- Long working range: Range up to 1100 m, ideal for larger jobsites and grading work.
- Full-function RC-400 remote: Change grade, menu settings, operating status, and battery information from up to 300 m away.
- Large graphical display: High-contrast display shows current grade, menu settings, rotation speed, masking, sensitivity, and HI alert information.
- Selectable rotation speeds: 300 / 600 / 900 rpm for different jobsite and receiver needs.
- Electronic masking: Electronic shutter/masking up to 3 quadrants to reduce interference on busy multi-laser jobsites.
- HI alert protection: Indicates when the laser has been disturbed, helping protect your grade reference.
Specification Table — Topcon RL-200 2S
| Specification | Value |
|---|---|
| Model | Topcon RL-200 2S |
| Laser type | Self-leveling dual slope laser |
| Grade range | X axis: up to ±10% / Y axis: -5% to +25% |
| Accuracy | 7 arc seconds |
| Working range | Up to 1100 m |
| Battery life | Up to 100 hours |
| Remote control | RC-400 full-function remote |
| Remote range | Up to 300 m |
| Rotation speeds | 300 / 600 / 900 rpm |
| Display | Large high-contrast graphical display |
| Masking | Electronic shutter/masking up to 3 quadrants |
| Remote channels | Selectable remote channel, up to 9 channels |
| HI alert | Indicates when the laser has been disturbed |
| Detector included in standard package | LS-80L with Holder 6 |
| Battery package | Rechargeable kit or dry kit, depending on package selected |
Typical Applications
The Topcon RL-200 2S is ideal for contractors and site crews working on:
- Dual-slope grading
- Drainage and water-flow control
- Site preparation and excavation
- Parking lots and roadwork
- Pads, ramps, and embankments
- Concrete and formwork elevation control
- Utility trenching and civil construction layout
- Large jobsites where long working range and remote operation are important
Why Purchasing the RL-200 2S from PRISM GeoSystems Benefits You
Buying a dual-slope laser is not just about buying the instrument — it is about getting the right package, the right receiver, and the right support so your crew can use it correctly from day one.
When you purchase the Topcon RL-200 2S from PRISM GeoSystems, you get:
- Correct kit configuration: We help match the RL-200 2S with the correct receiver, Holder 6, tripod, grade rod, power kit, and accessories for your specific workflow.
- Practical setup support: We can help with grade entry, axis orientation, receiver setup, remote operation, and common field-use questions.
- Local service mindset: If your laser gets bumped, dropped, or readings look questionable, you have a local team to help troubleshoot and guide you on calibration or service.
- One-stop accessories: Receivers, brackets, rods, tripods, batteries, chargers, and replacement accessories are available through one source.
- Regional availability: Supporting contractors across San Diego, Los Angeles, San Bernardino, Colton, San Marcos, Imperial, Riverside, Orange County, and Southern California.
