Product Description

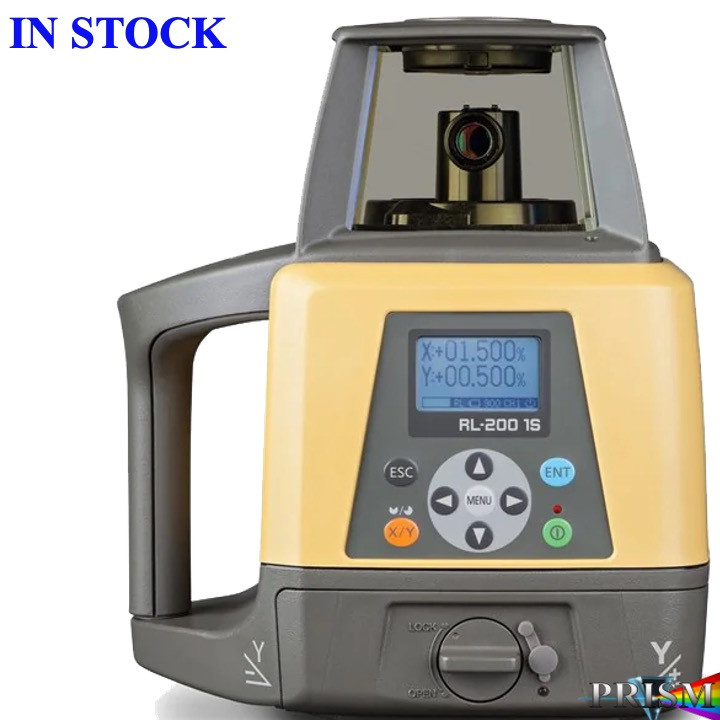

Topcon RL-200 1S Single Slope Laser Level.
Overview
The Topcon RL-200 1S is a high-accuracy single-slope rotary laser built for grading and layout where you need repeatable results day after day. It provides single slopes from -5% to +25%, making it a strong choice for site work, flatwork prep, drainage runs, and general exterior construction applications where dependable grade performance matters.
With a working area up to 1,100 m (3,600 ft) diameter (with receiver), the RL-200 1S is designed to cover large jobsites efficiently while maintaining tight grade control.
Key Features
- Single-slope capability: -5% to +25% for common grading/drainage applications
- High accuracy: 7 arc second accuracy for consistent grade repeatability
- Long range coverage: Working area up to 1,100 m (3,600 ft) diameter with receiver
- Jobsite-ready durability: Dust/water protection listed as IP66 in Topcon’s lasers & levels catalog
- Selectable rotation speeds: 300 / 600 rpm (catalog)
- Long operating time: catalog lists Alkaline: 120 hours; Ni-MH: 65 hours
Technical Specifications (Quick Specs)
- Working Area (Diameter): 800 m (catalog listing; commonly referenced as ~1,100 m/3,600 ft with receiver depending on package/receiver)
- Accuracy: 7 arc seconds
- Grade Range: Single slope -5% to +25%
- Rotation Speed: 300 / 600 rpm
- Dust/Water Rating: IP66
- Operating Time: Alkaline 120 hrs / Ni-MH 65 hrs
- Operating Temperature: -20°C to 50°C
Applications
Ideal for contractors and grade crews doing:
- Single-slope grading and drainage runs
- Site prep, excavation support, and subgrade checks
- Concrete and flatwork elevation control
- General exterior layout across larger working areas
What’s Included (Typical Package — configure to your needs)
RL-200 1S packages vary by kit. Common configurations include:
- RL-200 1S laser (single slope)
- Laser receiver (often LS-series) + mounting/bracket
- Tripod/grade rod options (as selected)
- Carrying case and power configuration (alkaline or rechargeable kit)
(We’ll quote the exact kit to match your crew and workflow.)
Why Buy from PRISM GeoSystems
- We help you choose the right kit configuration (receiver, bracket, power option, tripod/rod) instead of guessing online.
- You get local dealer support for setup guidance, use-case fit, and ongoing service needs.
- Serving working crews across San Diego, Los Angeles, San Bernardino, Colton, San Marcos, Imperial, Riverside, and Orange County (Southern California).
