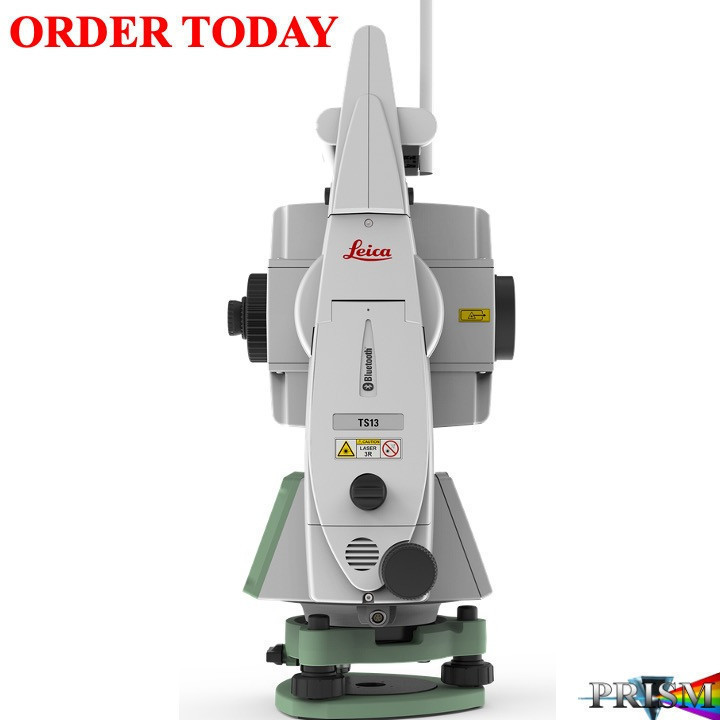

Leica TS13 1" Robotic Total Station Package, CSX8 Data Collector, X-Pad Software and more

Product Description

Data Sheet    Accessories Catalogue

Package Includes:

Instrument Package:

Data Collector Package:

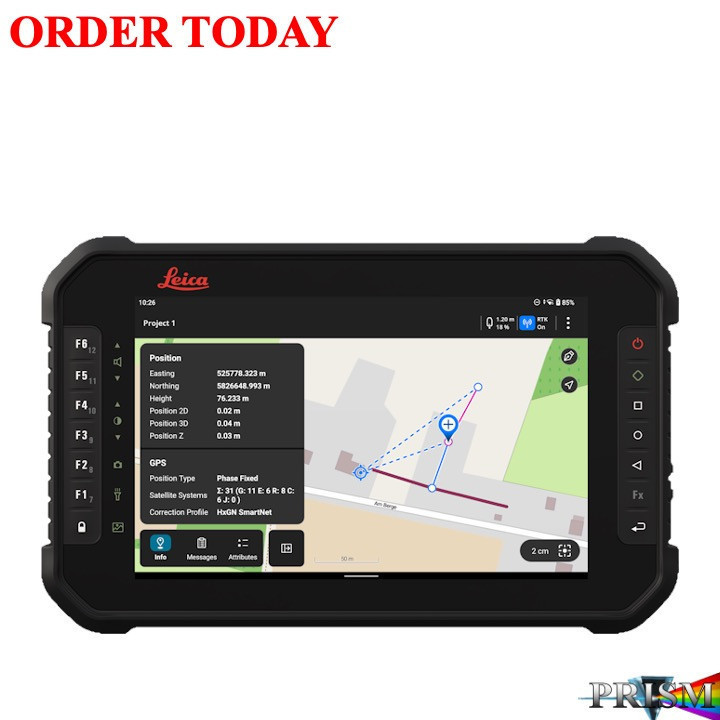

The Leica CSX 8” screen features Android 12 with Google Mobile Services, 8 GB RAM, 256 GB flash storage, Wi-Fi, Bluetooth, USB-A and USB-C ports, a MicroSD card slot, a 32 MP rear camera with dual flash, an 8 MP front camera, 4G/5G LTE module, dual-frequency GNSS, and IP66/IP68 environmental protection. It includes one Li-Ion battery, one USB-C charging cable with EU/UK/US/AUS power adapter, hand strap, Quick Guide, and a 2-year warranty.

Data Collector accessories:

Field Software:

X-PAD Survey TPS Manual containing functionality to
operate a TPS manual sensor

• 1 x  X-Pad Ultimate
• 1 x  X-PAD Survey TPS Manual
• 1 x 1year X-PERT Free

X-PAD Survey TPS Robotic contains functionality to operate robotic total
stations

• 1 x  X-PAD Survey TPS Robotic

Accessories:

Our Commitment to Your Success

Calibrated for Reliable Performance: Equipment is professionally calibrated to help ensure dependable accuracy in the field.

Certified for Accuracy: Instruments are tested and documented so customers can work with confidence.

Configured for Immediate Use: Packages can be set up and prepared based on the customer’s workflow and jobsite needs.

Training Included: Practical training is available to help your team operate the equipment correctly and efficiently.

Technical Support You Can Count On: Our team is here to assist with setup, operation, troubleshooting, and workflow questions.

Custom Packages Available: We can help build the right package with the equipment, accessories, and support needed for your specific application.

Service After the Sale: PRISM GeoSystems supports customers beyond the purchase with service, calibration, repairs, and expert guidance.

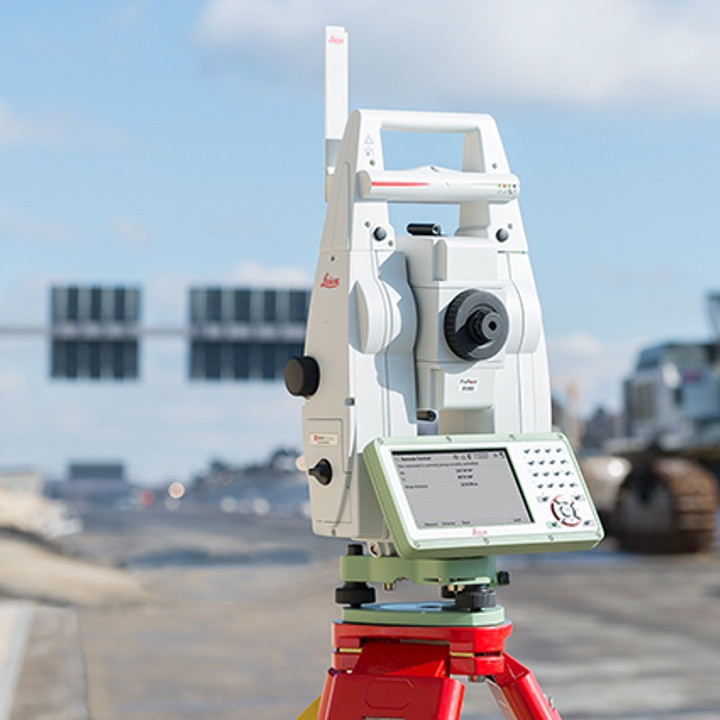

The Leica TS13 Total Station is a scalable platform designed to grow with your projects—starting in two-person conventional mode and upgradeable over time into a robotic total station for one-person operation. It’s built for efficient field production with Leica Captivate and supports modern, data-centric workflows for field data collection, management, visualization, and import/export.

For construction and survey crews, the TS13 supports accurate and effective workflows for stakeout, construction measurements, design data layout, as-built checks, and BIM tasks, using automated routines suited for both two-person and one-person workflows.

Key Features

• Upgradeable platform (two-person → robotic): Start conventional and scale to one-person robotics as your work demands change.
• Leica Captivate field software: Data-centric workflows with powerful coding and linework routines for efficient collection and deliverables.
• AutoHeight included: Automatic instrument height measurement to speed setup and reduce setup mistakes (0.7–2.7 m range, 1.0 mm accuracy).
• ATR Automatic Aiming: Automated target aiming with long-range performance to keep crews productive.
• Jobsite-ready durability: IP55 protection and –20°C to +50°C operating range.

Technical Specifications (Quick Specs)

Angle Measurement

• Accuracy options (Hz & V): 1″ / 2″ / 3″ / 5″ (absolute, continuous, diametrical)

Distance Measurement

• Prism range: 0.9 m to 3,500 m
• Non-prism / any surface (variants shown): R500: 0.9 m to >500 m, R1000: 0.9 m to >1,000 m
• Accuracy / typical measurement time:
  • Single (prism): 1 mm + 1.5 ppm / ~2.4 s
  • Single (prism fast): 2 mm + 1.5 ppm / ~1.5 s
  • Single (any surface): 2 mm + 2 ppm / ~2 s
• Laser: coaxial, visible red; dot size at 50 m: 8 mm × 20 mm

Automatic Aiming (ATR)

• Circular prism: up to 1,000 m; 360° prism: up to 800 m
• Typical ATR measurement time: ~3–4 s

Guide Light (EGL)

• Working range / accuracy: 5–150 m / ~5 cm @ 100 m

AutoHeight (Integrated)

• Range 0.7–2.7 m, accuracy 1.0 mm (1 sigma)

Power / Connectivity / Environmental

• Battery runtime: up to 8 hours (exchangeable Li-Ion)
• Interfaces: RS232, USB, Bluetooth®, WLAN
• Environmental: IP55, –20°C to +50°C, humidity 95% non-condensing
• Weight: 5.0 kg (basic variant)

Robotic & Upgrade Options (As Your Needs Grow)

• Keyboard/Display unit (optional): 5" WVGA color touch, illuminated keys; runs Windows EC7 / Captivate on the instrument (config dependent).
• Target Lock (optional): Circular prism 800 m, 360° prism 600 m.
• Robotic surveying + Prism Fast Search (optional):
  • SpeedSearch (360° prism): 300 m / typically 7 s
  • Long-range Bluetooth ranges shown: 500 m (CS20 internal long-range BT), 1,000 m (CTR20 expansion pack).

Applications

Ideal for crews needing reliable production on:

• Construction layout & stakeout (design data layout, point layout, verification)
• As-built checks & documentation
• BIM-related measurement tasks
• Mapping/topo workflows with efficient coding and linework routines

What’s Included (Typical Package — configure to your needs)

Because TS13 packages vary by configuration and upgrade level, PRISM GeoSystems can quote the exact build you want, commonly including:

• Leica TS13 instrument (configured for conventional or robotic use)
• Battery/charger and required cables
• Transport case
• Controller/communications options (as needed for robotic workflow)
• Prism/pole/tripod packages (optional add-ons)

(We’ll build the package around your workflow: conventional today, robotics tomorrow—without re-buying the wrong setup.)
