Product Description
The GL1425C Laser. New, fast, better.

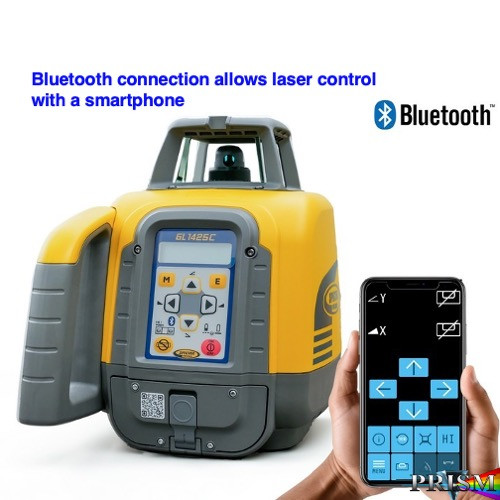

The automatic self-leveling GL1425C dual grade laser is the most rugged, cost-effective laser that does three jobs - level, grade, and vertical alignment. Even in harsh job site conditions, the GL1425C delivers consistently reliable and accurate performance, enabling you to work faster (up to 900 rpm) and smarter. The GL1425C comes with Bluetooth built-in and has a dedicated Laser Remote App.
Making the grades all "A's."
Applications:
-
Grading and excavating
-
Leveling concrete forms and footers
-
General construction vertical alignment and plumb such as anchor bolt and form alignment
-
Sports fields, tennis courts and driveways
-
Steep slope road embankments and ditch banks
-
Ramps and drainage.
CLICK to discover other available package options for this model.
Features & Benefits
- Self-Leveling - Automatic horizontal and vertical leveling
- Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
- Working range of 800 m (2,600 ft) diameter

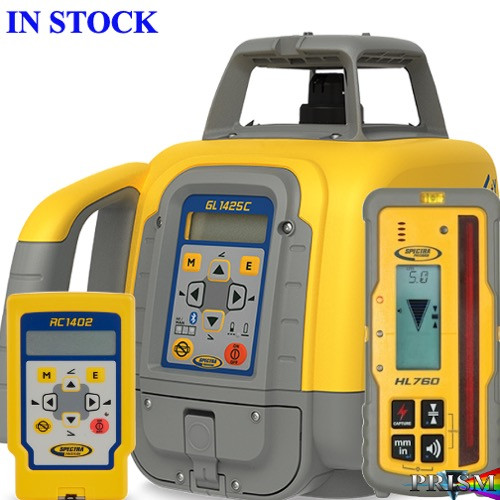

- Automatic Grade Matching - Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok
- Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
- Rotation selection of 300, 600 or 900 RPM
- Rugged - Extremely durable and portable
- 5 Year warranty
- Simplifies level, grade and vertical alignment setups
- Increases reliability, accuracy and durability
- Easy to transport, easy to carry, easy to store
- Energy-efficient design offers long battery life
- Highly durable design enables the GL1425C to survive a drop up to 1 m (3 feet) onto concrete
- Remote control or remote control app allows operation of all laser functions from anywhere on the job-site
- Multiple configuration options
Specifications
Grade Range, No tilt adjustment: typ. ± 9 %
Grade Range with tilt adjustment: ± 15 %
Rotation Speed: 300, 600, 900 rpm
Operational Diameter, with HL760: 800 m (2600 ft)
Laser Type: 630 – 643 nm
Laser Class: Class 2
Self Leveling Range: Typ. ± 5° (± 8.7%)
Radio Range (HL760): Up to 100m (330 ft)
Power Source: 10000 mAh NiMH battery back or 4 x 1.5V D alkaline batteries
Battery Life Time: Typ. 45 hours
Battery Charging Time: < 10 hours
Tripod Attachments: 5/8 x 11 horizontally and vertically
Dust and Water Proof (IP): IP66
