Product Description
Features & Benefits
- GL412N / GL422N are grade plus horizontal and vertical lasers. Simple, accurate dial in grade from -10% to +15% (Single GL412N, Dual GL422N)
- Up to 2,600 ft (800 m) working diameter which increases productivity by reducing need for multiple set-ups on a large job site
- Fast setup, minimal training time and automatic self leveling minimize operating costs and boost productivity
- Highly rugged design and patented lighthouse sealprotects the rotor head and glass andoffers superior drop and weather protection for reduced downtime
- Optional 2-way full function remote control allows grade changes to be made from anywhere on the jobsite
- Temperature calibrated for high accuracy over wide temperature changes
- IP66 dust and water-proof to withstand harsh jobsite conditions

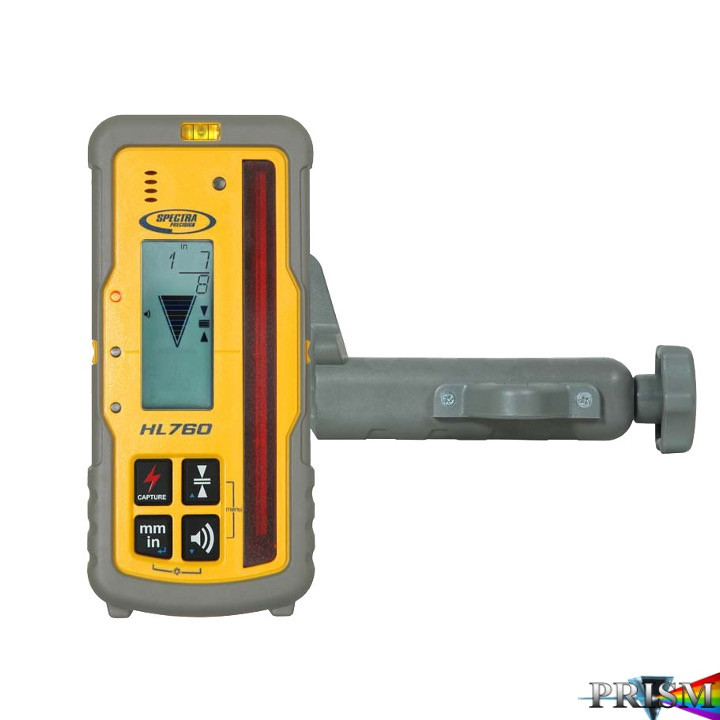

- Customizable with choice of HL760, HR320 or CR700 receivers
- Mask mode eliminates interference from other crews on the jobsite
- Automatic Grade Match and PlaneLok
Applications
- Leveling concrete forms and footers
- General construction vertical alignment and plumb such as anchor bolt and form alignment
- “Over the top” sewer and storm drain pipe installations
- Grading and excavating
- Driveways and ramps
- Trenching
- Sport fields, tennis courts (GL422N only)
- Steep slope road embankments and ditch banks
Technical Data
- Leveling accuracy *1,3: ± 1.5 mm/30 m, 1/16“ @ 100 ft, 10 arc seconds
- Grade accuracy *1,3: ± 3.0 mm/10 m, 1/8“ @ 100 ft, 20 arc sec
- Grade range *4: -10% to +15% (Dual Axes GL422N) -10% to +15% (Single Axis GL412N)
- Rotation speed: 300, 600 rpm
- Operating area *1,2: appr. 400 m (1300 feet) radius with detector
- Laser type: red diode laser 650 nm
- Laser class: Class 2, < 3.4 mW
- Self-leveling range: appr. ± 5° (+/-9%)
- Leveling indicators: LCD indications and LED flashes
- Radio range (HL760): up to 100 m (330 ft)
- Power Source:: 10000mAh NiMH battery pack
- Battery life *1: 35 hours NiMH; 50 hours alkaline
- Operating temp.: -20° C ... 50° C (-4° F...122° F)
- Storage temp.: -20° C ... 70° C (-4° F...158° F)
- Tripod attachments: 5/8 x 11 horizontally and vertically
- Dust and Water proof: IP66
- Weight: 3.1 kg (6.8 lbs)
- Low voltage indication: flashing/shining of the battery indicator
- Low voltage disconnection: unit shuts off
- *1) at 21° Celsius
- *2) under optimal atmospheric circumstances
- *3) along the axis
- *4) pre-tilt above 9%
Spectra GL412 –10 to +15% Single Axis Grade Laser Level
The Spectra Precision® GL412 Grade Laser and GL422 Grade Laser are cost-effective, automatic self-leveling lasers that do three jobs—level, grade and vertical alignment with plumb. Both lasers feature a 2-way, full-function remote control so you can make grade changes from anywhere on the job site for reduced setup time and faster operation.The Spectra Precision® GL412 Grade Laser and GL422 Grade Laser are cost-effective, automatic self-leveling lasers that do three jobs—level, grade and vertical alignment with plumb. Both lasers feature a 2-way, full-function remote control so you can make grade changes from anywhere on the job site for reduced setup time and faster operation.The Spectra Precision® GL412 Grade Laser and GL422 Grade Laser are cost-effective, automatic self-leveling lasers that do three jobs—level, grade and vertical alignment with plumb. Both lasers feature a 2-way, full-function remote control so you can make grade changes from anywhere on the job site for reduced setup time and faster operation.
Specifications
- Range up to 2,600 feet with laser receiver
- Accuracy ±1/16 inch at 100 feet
- Self-leveling within ±5 degrees
- Vertical plumb alignment
- Single grade from –10 to +15%
*Please Note: Due to the fact that we are brick and mortar store with daily customer traffic, items may be sold before updating our online inventory.
Product Videos
Custom Field
Certificate of Calibration Included with the purchase.
Condition Brand New
